  1" Diameter    /     /     /     /

Part Number:
1125
 Actual Diameter:
32mm / 1-1/4"
 Thread size:
1/4-20F
 Backing Material:
•• VINYL ••
This handy little backing plate features 1/4-20 plastic threads. Thread diameter/pitch is easily modified via tapping to 6mmx1.0 (similar diameter & pitch to 1/4-20), or via drilling & tapping to 5/16-24 thread. To avoid damaging the threads, do not overtighten or repeatedly install/reinstall the backing plate.
Price:
$11.95
Qty:
Mirka 1-1/4" (32mm) Diameter Vinyl Backing Plate

Mirka 1-1/4" (32mm) Diameter Vinyl Backing Plate

Mirka 1-1/4" (32mm) Diameter Vinyl Backing Plate
Click to enlarge image(s)


True tight-area sanding & polishing just became a reality.

The Mirka 32mm Vinyl-Faced Backing Plate is a must have for tight-area sanding & polishing tasks. When mounted to compact rotary or random orbital machines, these plates eliminate much of the difficulty and stress commonly associated with critical tight-area work.

Also available with a Velcro Face here.

These backing plates feature 1/4-20 female plastic threads.
Backing plates with re-sized threads can be found here.

In most cases, you will need an adaptor or extension to install this plate onto your machine. We offer adaptors and extensions here.

These backing plates feature an exact diameter of 29mm.
They were originally designed for use with 32mm diameter sanding rosettes.
PSA (peel and stick) Sanding Rosettes can be found here.

Notes:
1. To avoid damaging the threads, do not overtighten or repeatedly install/reinstall the backing plate.
2. To date, there have been no reports of thread failures on any of the plates that I've sold.

Part Number:
1125G
 Actual Diameter:
32mm / 1-1/4"
 Thread size:
1/4-20F
 Backing Material:
MICRO HOOK
This handy little backing plate features 1/4-20 plastic threads. Thread diameter/pitch is easily modified via tapping to 6mmx1.0 (similar diameter & pitch to 1/4-20), or via drilling & tapping to 5/16-24 thread. To avoid damaging the threads, do not overtighten or repeatedly install/reinstall the backing plate.
Price:
$11.95
Qty:
Mirka 1-1/4" (32mm) Diameter Velcro Backing Plate

Mirka 1-1/4" (32mm) Diameter Velcro Backing Plate

Mirka 1-1/4" (32mm) Diameter Velcro Backing Plate
Click to enlarge image(s)


True tight-area sanding & polishing just became a reality.

The Mirka 32mm Velcro-Faced Backing Plate is a must have for tight-area sanding & polishing tasks. When mounted to compact rotary or random orbital machines, these plates eliminate much of the difficulty and stress commonly associated with critical tight-area work.

Also available with a Vinyl Face here.

These backing plates feature 1/4-20 female plastic threads.
Backing plates with re-sized threads can be found here.

In most cases, you will need an adaptor or extension to install this plate onto your machine. We offer adaptors and extensions here.

These backing plates feature an exact diameter of 29mm.
They were originally designed for use with 32mm diameter sanding rosettes.
PSA (peel and stick) Sanding Rosettes can be found here.

Notes:
1. To avoid damaging the threads, do not overtighten or repeatedly install/reinstall the backing plate.
2. To date, there have been no reports of thread failures on any of the plates that I've sold.

   Looking for a buffing pad to fit this backing plate?
View the entire line of 32mm (1-1/4") Buffing Pads and Microfiber Discs here.

Part Number:
9P06.060
 Actual Diameter:
30mm
 Thread size:
M10
 Backing Material:
•• VINYL ••
The Rupes® 9P06.061" 30mm Vinyl Backing Plate comes factory installed on the Rupes® LD30 Pneumatic Orbital DeNibber. If you own an LD30, it's a good idea to keep a spare on hand, as they are VERY difficult to locate in a pinch.
Price:
$27.46
Qty:
Rupes 30mm Vinyl-Face Backing Plate - fits LD30

Rupes 30mm Vinyl-Face Backing Plate - fits LD30

Rupes 30mm Vinyl-Face Backing Plate - fits LD30
Built for ultra-high speed! The Rupes 9P06.060 30mm Vinyl-Face Backing Plate features a durable vinyl face. It is designed for use with all brands of PSA (peel and stick adhesive) sanding rosettes, including Mirka's Polarstar Spot Repair Discs, as well as their Waterproof Sanding Rosettes.<br/>9P06.060 | Rupes 1-1/4" (30mm) LD30 Vinyl Backing Plate.<br/>9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/>9P06.062 | Rupes 1-1/4" (30mm) LD30 Interface Pad.<br/><br/>The Rupes 9P06.060, 9P06.061, and 9P06.062 are all supplied with the Rupes LD30 Pneumatic 30mm De-Nibber. This trio enables the use of PSA (peel and stick adhesive) and Velcro style sanding discs and rosettes.<br/>9P06.060 | Rupes 1-1/4" (30mm) LD30 Vinyl Backing Plate.<br/>9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/>9P06.062 | Rupes 1-1/4" (30mm) LD30 Interface Pad.<br/><br/>The Rupes 9P06.060 and 9P06.061 are supplied with the Rupes LD30 Pneumatic 30mm De-Nibber. These plates enables the use of PSA (peel and stick adhesive) and Velcro style sanding discs & rosettes.9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/><br/>The Rupes 9P06.061 1-1/4" (30mm) Velcro-Face Backing Plate is designed for use with the LD30's Velcro-to-Vinyl Foam Interface Pad. Of course, any type of Velcro-style sanding rosette will affix directly onto this plate.<br/><br/>
Click to enlarge image(s)


9P06.060 | 1-1/4" (30mm) Vinyl Backing Plate. Fits LD30.

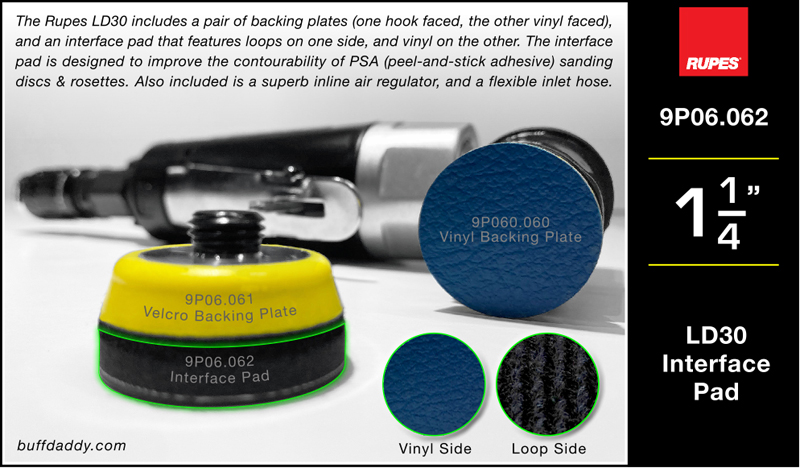

The Rupes LD30 30mm Air-Powered Orbital Denibber is capable of topping out at 7,500 oscillations per minute, which can really tax its tiny backing plate. Should a backing plate sustain damage due to an inadvertent dropping of the machine or some other unforseen event, you'll be dead in the water unless you've got a replacement on hand. The 9P06.060 is a factory-direct replacement for the vinyl-faced backing plate that was originally shipped with the machine.

LD30 plates: Velcro | Vinyl | Interface

We stock backing plates for the following machines:
LHR15ES | LHR15II | LHR15III | LHR15V | HLR15 | LHR21ES | LHR21II | LHR21III | LHR21V | HLR21 | LHR75 | LHR75E | HLR75 | LHR12E | LH19E | LH76P | LD30 | TA50 | Skorpio

Part Number:
9P06.061
 Actual Diameter:
30mm
 Thread size:
M10
 Backing Material:
HOOK
The Rupes® 9P06.061" 30mm Velcro Backing Plate comes factory installed on the Rupes® LD30 Pneumatic Orbital DeNibber. If you own an LD30, it's a good idea to keep a spare on hand, as they are VERY difficult to locate in a pinch.
Price:
$27.54
Qty:
Rupes 30mm Velcro Backing Plate - fits LD30

Rupes 30mm Velcro Backing Plate - fits LD30

Rupes 30mm Velcro Backing Plate - fits LD30
9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/><br/>The Rupes 9P06.061 1-1/4" (30mm) Velcro-Face Backing Plate is designed for use with the LD30's Velcro-to-Vinyl Foam Interface Pad. Of course, any type of Velcro-style sanding rosette will affix directly onto this plate.<br/><br/><br/>9P06.060 | Rupes 1-1/4" (30mm) LD30 Vinyl Backing Plate.<br/>9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/>9P06.062 | Rupes 1-1/4" (30mm) LD30 Interface Pad.<br/><br/>The Rupes 9P06.060, 9P06.061, and 9P06.062 are all supplied with the Rupes LD30 Pneumatic 30mm De-Nibber. This trio enables the use of PSA (peel and stick adhesive) and Velcro style sanding discs and rosettes.<br/>9P06.060 | Rupes 1-1/4" (30mm) LD30 Vinyl Backing Plate.<br/>9P06.061 | Rupes 1-1/4" (30mm) LD30 Velcro Backing Plate.<br/>9P06.062 | Rupes 1-1/4" (30mm) LD30 Interface Pad.<br/><br/>The Rupes 9P06.060 and 9P06.061 are supplied with the Rupes LD30 Pneumatic 30mm De-Nibber. These plates enables the use of PSA (peel and stick adhesive) and Velcro style sanding discs & rosettes.9P06.060 | Rupes 1-1/4" (30mm) LD30 Vinyl Backing Plate.<br/><br/>The Rupes 9P06.060 1-1/4" (30mm) Vinyl-Face Backing Plate features a durable vinyl face. It is designed for use with all brands of PSA (peel and stick adhesive) sanding rosettes, including Mirka's Polarstar Spot Repair Discs, as well as their Waterproof Sanding Rosettes.<br/><br/>
Click to enlarge image(s)


9P06.061 | 1-1/4" (30mm) Velcro Backing Plate. Fits LD30.

The Rupes LD30 30mm Air-Powered Orbital Denibber is capable of topping out at 7,500 oscillations per minute, which can really tax its tiny backing plate. Should a backing plate sustain damage due to an inadvertent dropping of the machine or some other unforseen event, you'll be dead in the water unless you've got a replacement on hand. The 9P06.061 is a factory-direct replacement for the Velcro-faced backing plate that was originallyshipped with the machine.

LD30 plates: Velcro | Vinyl | Interface

We stock backing plates for the following machines:
LHR15ES | LHR15II | LHR15III | LHR15V | HLR15 | LHR21ES | LHR21II | LHR21III | LHR21V | HLR21 | LHR75 | LHR75E | HLR75 | LHR12E | LH19E | LH76P | LD30 | TA50 | Skorpio
Specifications
  • Actual diameter: 30mm

  • Attachment material: intermediate-height hook
  • Thread size: M10-1.25 male

  • Height from face to mounting pad: 1/2"

  • Weight: 14g (.50 oz.)
  2" Diameter    /     /     /     /
  3" Diameter - Hole Mount     /    /     /     /

Part Number:
990.007
 Actual Diameter:
2 - 7/8"
 Thread size:
M6 bolt
 Backing Material:
HOOK
This 3" (75mm) diameter backing plate was made specifically for use with the Rupes LHR75 (pneumatic) and LHR75e (electric) BigFoot Random Orbital Polishers. It's a good idea to keep at least one spare on hand, as they are not all that easy to locate in a pinch.
Price:
$28.30
Qty:
Rupes 3" Velcro Backing Plate

Rupes 3" Velcro Backing Plate

Rupes 3" Velcro Backing Plate
Rupes 990.007 | 3" Velcro Backing Plate.<br/><br/>Factory installed on the Rupes LHR75E 3" Mini Random Orbital Polisher.<br/><br/>Rupes 990.007 | 3" Velcro Backing Plate.<br/><br/>Factory installed on the Rupes HLR75E 3" iBrid Random Orbital Polisher.<br/><br/>Rupes 990.007 | 3" Velcro Backing Plate.<br/><br/>Factory installed on the Rupes LHR75 3" Pneumatic Random Orbital Polisher.<br/><br/>Rupes 990.007 | 3" Velcro Backing Plate.<br/><br/>Factory installed on the following Rupes 3" machines: LHR75, LHR75E, HLR75.<br/><br/>
Click to enlarge image(s)


990.007 | Rupes 3" Velcro Backing Plate.

Rupes BigFoot Random Orbital Polishers are robust, well-built machines. Even the factory installed backing plate can last for years. But, accidents do happen. Should the backing plate sustain damage due to an inadvertent dropping of the machine or some other unforseen event, you'll be dead in the water unless you've got a replacement on hand. The Rupes 990.007 is a factory-direct replacement for the following 3" machines:

LHR75 | LHR75E | HLR75

We stock backing plates for the following machines:
LHR15ES | LHR15II | LHR15III | LHR15V | HLR15 | LHR21ES | LHR21II | LHR21III | LHR21V | HLR21 | LHR75 | LHR75E | HLR75 | LHR12E | LH19E | LH76P | LD30 | TA50 | Skorpio

Part Number:
624064000
 Actual Diameter:
80mm / 3-1/8"
 Thread size:
M6 bolt
 Backing Material:
HOOK
The Metabo® 624064000 80mm (3-1/8") Velcro Backing Plate comes factory installed on the Metabo SXE400 Electric Random Orbital Sander. This plate is a great match for Meguiar's 3" DA Microfiber Discs (3-3/8" actual), as well as Rupes® 80/100mm (78-80mm actual) Foam Buffing Pads. This is a very rigid plate, with excellent holding power.
Price:
$17.95
Qty:
Metabo 3-1/8" Velcro Backing Plate

Metabo 3-1/8" Velcro Backing Plate

Metabo 3-1/8" Velcro Backing Plate
Click to enlarge image(s)


Metabo 3-1/8" Velcro Backing Plate.

This is a direct replacement for the Metabo SXE400 Backing Plate. It's also a fantastic fit for Meguiar's 3" DA Microfiber Cutting and Finishing Discs, which actually measure 3-3/8" diameter.

Fits other machines utilizing a 6mm bolt.  Excellent holding power.

This backing plate is a bit too large to work with 3" sanding discs.
However, it fits a wide variety of buffing pads, including:

Rupes 3" Foam Buffing Pads
Part numbers 9.BF100U, 9.BF100H, 9.BF100J, 9.BF100M, 9.BF100S

Meguiar's 4" Soft Buff Foam Pads
Part numbers W7204, W8204, W9204

Meguiar's DA Powerpak Pads
Part numbers G3507, G3508, and G3509



To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 80mm / 3-1/8"

  • Attachment material: micro hook
  • Thread size: 6mm bolt

  • Weight: 40g (1.41 oz.)
  3" Diameter - Male Thread     /    /     /     /

Part Number:
913GV
 Actual Diameter:
2 - 7/8"
 Thread size:
1/4 - 20
 Backing Material:
HOOK
This backing plate is identical to the 913G, but features 3 holes, making it compatible for vacuum-capable machines. It features a traditional flared shape and standard hook attachment material. The shaft size is 1/4"-20. Most standard D/A machines use a 5/16"-24 mounting stud, so verify compatibility with your machine before ordering!
Price:
$19.00
Qty:
Mirka 3" Diameter Velcro Backing Plate

Mirka 3" Diameter Velcro Backing Plate

Mirka 3" Diameter Velcro Backing Plate
Click to enlarge image(s)


Designed for Abranet® & Autonet™ discs, but works well with all hook & loop systems.

The Mirka 913GV 3" Velcro Backing Plate is a small and lightweight. The flared edge of the plate is soft and pliable, so it works well on curved or complex surfaces. It is a direct replacement plate for the following Mirka machines: MR-3 | MR-30 | MR-350

The face of this plate is relatively flexible. When used on curved surfaces, its edge conforms with ease.  Its micro-hook Velcro is short, grabby, and long lasting.  Should the side of the plate happen to contact a delicate object, you'll be relieved to know that it is soft to the touch. Six vacuum holes ensure efficient vacuuming of the sanding surface. A non-vacuum version of this plate is also available: 913G

Mirka 913GV specifications: 2-13/16" diameter | 1/4-20 male thread

 Sanding? Add a Mirka Interface Pad.
Interface pads increase contourability and help to better distribute applied pressure across the face of the disc.  To achieve maximum cushioning and shapability of the sanding disc, this is the interface pad you'll need. The Mirka 1033 3" Velcro Interface Pad measures 3" in diameter, and is 1/2" tall. More info: 1033 | 9133 | 9947

 Need 3" sanding discs?
We offer several types of 3" Mirka® Sanding Discs, available in any quantity: Silver | Abralon | Abranet | Autonet

 Need 3" buffing pads discs?
We offer several types of 3" buffing pads. Check them out here.

 To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 2-13/16"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.

  • Weight: 28g (.99 oz.)
  • Thread size: 1/4-20 male

  • Height to mounting pad: 3/8"

  • Designed for use with Abranet® and Autonet™ sanding discs, but works well with all hook & loop systems

Part Number:
913G
 Actual Diameter:
2 - 7/8"
 Thread size:
1/4 - 20
 Backing Material:
HOOK
This backing plate is rather soft and pliable. It features a traditional flare-shaped edge, allowing for progressive flexibility over contours and curves. Features hook attachment material. The shaft size is 1/4"-20. Most standard D/A machines use a 5/16"-24 mounting stud, so verify compatibility with your machine before ordering!
Price:
$19.00
Qty:
Mirka 3" Diameter Backing Plate

Mirka 3" Diameter Backing Plate

Mirka 3" Diameter Backing Plate
Click to enlarge image(s)


Designed for Abranet® & Autonet™ discs, but works well with all hook & loop systems.

The Mirka 913GV 3" Velcro Backing Plate is a small and lightweight. The flared edge of the plate is soft and pliable, so it works well on curved or complex surfaces. It is a direct replacement plate for the following Mirka machines: MR-3 | MR-30 | MR-350

The face of this plate is relatively flexible. When used on curved surfaces, its edge conforms with ease.  Its micro-hook Velcro is short, grabby, and long lasting.  Should the side of the plate happen to contact a delicate object, you'll be relieved to know that it is soft to the touch. A vacuum-ready version of this plate featuring six vacuum holes is also available: 913GV

Mirka 913G specifications: 2-13/16" diameter | 1/4-20 male thread

 Sanding? Add a Mirka Interface Pad.
Interface pads increase contourability and help to better distribute applied pressure across the face of the disc.  To achieve maximum cushioning and shapability of the sanding disc, this is the interface pad you'll need. The Mirka 1033 3" Velcro Interface Pad measures 3" in diameter, and is 1/2" tall. More info: 1033 | 9133 | 9947

 Need 3" sanding discs?
We offer several types of 3" Mirka® Sanding Discs, available in any quantity: Silver | Abralon | Abranet | Autonet

 Need 3" buffing pads discs?
We offer several types of 3" buffing pads. Check them out here.

 To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 2-13/16"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.

  • Weight: 28g (.99 oz.)
  • Thread size: 1/4-20 male

  • Height to mounting pad: 3/8"

  • Designed for use with Abranet® and Autonet™ sanding discs, but works well with all hook & loop systems

Part Number:
DBP3
 Actual Diameter:
2 - 15/16"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
The specialized injection-molded foam has been designed to deliver just the right amount of firmness; yet, it is comfortable when used on complex shapes, such as curved panels, hood bulges, bumper covers, and fender flares. Micro-hook Velcro really holds on to all varieties of buffing pads, and has proven to be remarkable long lasting.
Price:
$18.49
Qty:
Meguiar's Soft Buff 3" D/A Backing Plate

Meguiar's Soft Buff 3" D/A Backing Plate

Meguiar's Soft Buff 3" D/A Backing Plate
Click to enlarge image(s)



The best Meguiar's 3" plate, to date!

Build quality abounds.
One-piece design features an internal rigid composite plate, assuring that the backing plate will not be easily damaged due to an unfortunate drop. The beefed-up design also ensures long term durability, and balancing.  (5/16-24 male thread)

The specialized injection-molded foam has been designed to deliver just the right amount of firmness; yet, it is comfortable when used on complex shapes, such as curved panels, hood bulges, bumper covers, and fender flares. Micro-hook Velcro really holds on to all varieties of buffing pads, and has proven to be remarkable long lasting.

Looking for a comparable backing plate in a different diameter? 5" DBP5 | 6" DBP6

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 2-15/16"

  • Attachment material:
    Velcro®- low profile hook
  • Thread size: 5/16"-24 male

  • Long lasting:
    One piece molded construction

Part Number:
102GG
 Actual Diameter:
2 - 7/8"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This is a tall and heavy plate. The added weight is a bonus when used on machines designed for use with larger backing plates, as it keeps the balance intact.   A bit stiff, but no more than the average plate.  One of my favorites, and is super durable. Weight: 80g. Height to mounting pad: 1".
Price:
$23.46
Qty:
Mirka 3" Diameter Velcro Backing Plate

Mirka 3" Diameter Velcro Backing Plate

Mirka 3" Diameter Velcro Backing Plate
Click to enlarge image(s)


A chunky bruiser of a plate. Micro-hook Velcro.

The Mirka 102GG 3" Velcro Backing Plate is built like a tank. Its height comes in handy at times, while the added weight allows it to work well with machines designed for 5" and 6" backing plates. Molded polymer construction means that the black hub, yellow foam center, and Velcro face are molded together, not glued. Consequently, durability is tip-top.

The face of the plate is stiff, yet when used on curved surfaces its edge conforms to some degree.  Its micro-hook Velcro is short, grabby, and long lasting.  Should the side of the plate happen to contact a delicate object, you'll be relieved to know that it is soft to the touch. This is great addition to your backing plate arsenal.

Mirka 102GG specifications: 2-7/8" diameter | 5/16-24 male thread

Sanding? Add a Mirka Interface Pad.
Interface pads increase contourability and help to better distribute applied pressure across the face of the disc.  To achieve maximum cushioning and shapability of the sanding disc, this is the interface pad you'll need. The Mirka 1033 3" Velcro Interface Pad measures 3" in diameter, and is 1/2" tall. More info: 1033

Need 3" sanding discs?
We offer several types of 3" Mirka® Sanding Discs, available in any quantity: Silver | Abralon | Abranet | Autonet

Need 3" buffing pads discs?
We offer several types of 3" buffing pads. Check them out here.

To view our entire backing plate lineup, visit the Backing Plate Main Page.

Part Number:
103GG
 Actual Diameter:
3 - 3/8"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This plate features a traditional flare-shaped edge, allowing for progressive flexibility over contours and curves. The low profile hook attachment material is ideal for use with sanding discs, but easily hangs onto buffing pads, too. This plate is well built, and will last a very long time.
Price:
$23.46
Qty:
Mirka 3-1/2" Diameter Velcro Backing Plate

Mirka 3-1/2" Diameter Velcro Backing Plate

Mirka 3-1/2" Diameter Velcro Backing Plate
The 103GG mounted to a Meguiar's DMF3 3" DA Microfiber Finishing Disc. Exact-Fit!!Mirka 103GG<br/>3-3/8" Velcro Backing Plate.<br/><br/>This backing plate is
Click to enlarge image(s)


Micro-hook Velcro is compatible with all hook & loop systems.

The Mirka 103GG 3-1/2" Velcro Backing Plate measures in at an actual 3-3/8" diameter, making it the same exact diameter as the ever-popular DMC3 / DMF3 Meguiar's 3" DA Microfiber Discs. By delivering full support to the outer edge of the microfiber disc, cutting power can increase immensely. It can also help to create a more refined finish versus using the Meguiar's recommended S3BP backing plate. By fully supporting the microfiber, random rotation of the plate runs at maximum potential.


Mirka's backing plates are manufactured using a top quality molded polymer construction. This means that the rigid inner  hub, yellow foam center, and Velcro face are molded together (not glued). Each plate is balanced to eliminate vibration, so you can work comfortably. The medium density polyurethane foam is somewhat firm, but will give a small degree due to its flared edge.

Mirka 103GG specifications: 3-3/8" diameter | 5/16-24 male thread

 To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 3-3/8"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 1/2"

  • Weight: 78g (2.75 oz.)

Part Number:
103
 Actual Diameter:
3 - 3/8"
 Thread size:
5/16-24
 Backing Material:
•• VINYL ••
This plate features a traditional flare-shaped edge, allowing for progressive flexibility over contours and curves. The vinyl backing material is very durable, so it can stand a lot of disc changing. As is the case with all Mirka backing plates, it is well built, balanced, and will last a long time. Hard to find size!
Price:
$21.78
Qty:
Mirka 3-1/2" Diameter Backing Plate - Vinyl Face

Mirka 3-1/2" Diameter Backing Plate - Vinyl Face

Mirka 3-1/2" Diameter Backing Plate - Vinyl Face
Vinyl Face / PSA
Click to enlarge image(s)
Vinyl Face.

Mirka's backing plates are manufactured using a top quality molded polymer construction.

This means that the black hub, yellow foam center, and white face are molded together- not glued.

Each plate is balanced to eliminate vibration, so you can work comfortably. Its vinyl backing material is very durable, so it can handle a lot of disc changing.

The medium density polyurethane foam is somewhat firm, but will give a small degree due to its flared edge.



To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 3-3/8"

  • Attachment material: vinyl

  • Max speed: 13,000 r.p.m.
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 1/2"

  • Weight: 78g (2.75 oz.)
  5" Diameter - Hole Mount     /    /     /     /

Part Number:
980.027
 Actual Diameter:
4 - 7/8"
 Thread size:
M8 bolt
 Backing Material:
HOOK
This 5" (125mm) diameter backing plate was made specifically for use with the Rupes BigFoot and Skorpio lineup of 5" tools, including: LHR12E, LHR15ES, and 125mm Skorpio DA Palm Sanders. Also fits the LHR21ES. Its Velcro is designated as being "extra hold". If you're looking for a plate featuring "normal hold", check out the Rupes 980.015.
Price:
$41.00
Qty:
Rupes 5" Velcro Backing Plate

Rupes 5" Velcro Backing Plate

Rupes 5" Velcro Backing Plate

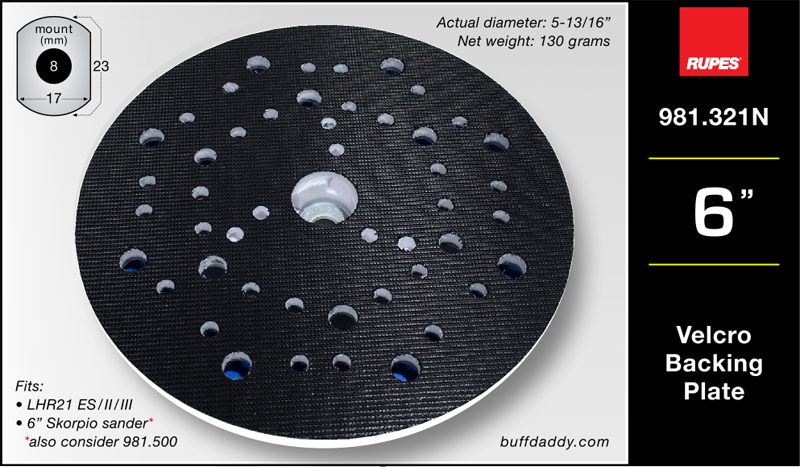

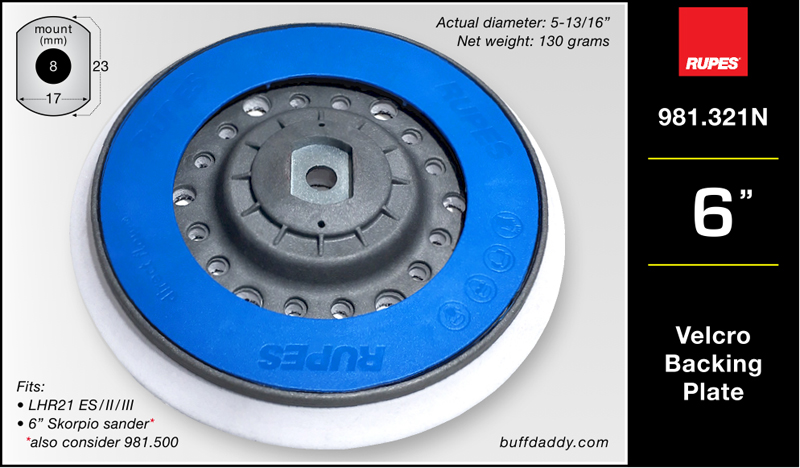

980.027N & 981.321N | Rupes 5" & 6" Velcro Backing Plates.<br/><br/>The 5" plate fits all LHR15ES (Legacy), LHR15ll (Mark 2), and LHR15lll (Mark 3) BigFoot machines. It also fits all LHR12E BigFoot Duetto 5" Random Orbital Polishers.<br/><br/>The 6" plate fits all LHR21ES (Legacy), LHR21ll (Mark 2), and LHR21lll (Mark 3) BigFoot machines. <br/><br/>Since the mounting pads are identical (and both plates are virtually identical in weight), either will mount & perform well on 5" and 6" versions of the BigFoot machine.<br/><br/>980.027N | Rupes 5" Velcro Backing Plate.<br/><br/>The Rupes® 980.027N 5" Velcro Backing Plate is a direct replacement for machines such as the LHR15lll BigFoot (Mark 3) 5" Random Orbital Polisher (shown in this photo).<br/><br/>Fits all LHR15ES (Legacy), LHR15ll (Mark 2), and LHR15lll (Mark 3) machines. This plate also fits all LHR12E BigFoot Duetto 5" Random Orbital Polishers.<br/><br/>Actual diameter is 4-7/8". Weight is 124-126 grams.<br/><br/>The "N" in its part number refers to this being the updated or "new" version of this plate. The original LHR15 machine utilized a smaller backing plate mounting pad. Therefore, this plate will fit ALL models of Rupes LHR-series 15's.<br/><br/>980.027N | Rupes 5" Velcro Backing Plate.<br/><br/>Picture of its Velcro hooks.<br/><br/>This is a direct replacement for the factory supplied 5" unit. Fits all LHR15ES (Legacy), LHR15ll (Mark 2), and LHR15lll (Mark 3) BigFoot machines. This plate also fits all LHR12E BigFoot Duetto 5" Random Orbital Polishers.<br/><br/>The "N" in its part number refers to this being the updated or "new" version of this plate. The original LHR15 machine utilized a smaller backing plate mounting pad. This plate fits ALL models of the Rupes LHR12E and LHR-series 15. Actual diameter is 4-7/8". Weight is 124-126 grams.<br/><br/>RUPES 980.027N 5" Velcro Backing Plate. Picture of its backside (blue friction ring, gray hub).<br/><br/>This is a direct replacement for the factory supplied 5" unit. Fits all LHR15ES (Legacy), LHR15ll (Mark 2), and LHR15lll (Mark 3) BigFoot machines. This plate also fits all LHR12E BigFoot Duetto 5" Random Orbital Polishers.<br/><br/>The "N" in its part number refers to this being the updated or "new" version of this plate. The original LHR15 and Duetto machines utilized a smaller backing plate mounting pad . This plate fits ALL models of the Rupes LHR12E and LHR-series 15. Actual diameter is 4-7/8". Weight is 124-126 grams.<br/><br/>
Click to enlarge image(s)

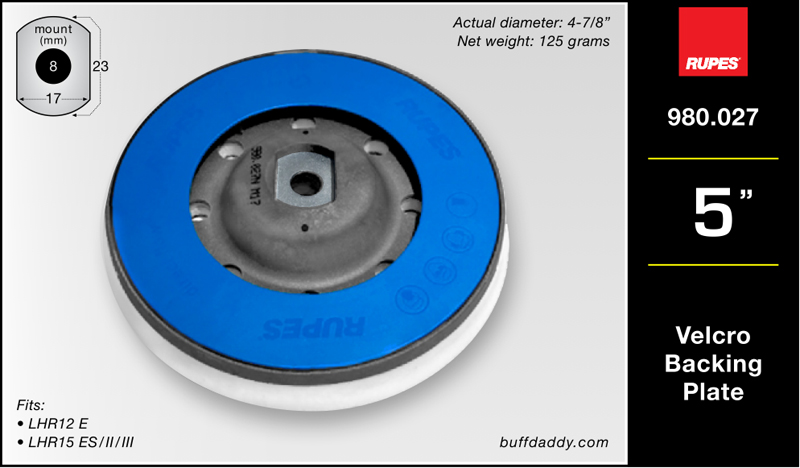

980.027N | Rupes 5" Velcro Backing Plate.

Rupes BigFoot Random Orbital Polishers are robust, well-built machines. Even the factory installed backing plate can last for years. But, accidents do happen. Should the backing plate sustain damage due to an inadvertent dropping of the machine or some other unforseen event, you'll be dead in the water unless you've got a replacement on hand. The Rupes 980.027N is a factory-direct replacement for the following 5" machines:

LHR15ES | LHR15II | LHR15III | LHR12E

This backing plate will also physically mount onto the following 6" machines:

LHR21ES | LHR21II | LHR21III

Note: The 980.027N 5" backing plate is 5 grams lighter than the Rupes 981.321N 6" backing plate (125g vs 130g). Although installing this plate onto machines originally designed for 6-inch plates will enable the use of 5-inch pads & discs, machine vibration & balance may be negatively affected.

Looking for a 6" version of this plate?
Check out the 981.321N Rupes 6" Velcro Backing Plate.

We stock backing plates for the following machines:
LHR15ES | LHR15II | LHR15III | LHR15V | HLR15 | LHR21ES | LHR21II | LHR21III | LHR21V | HLR21 | LHR75 | LHR75E | HLR75 | LHR12E | LH19E | LH76P | LD30 | TA50 | Skorpio
  5" Diameter - Male Thread     /    /     /     /

Part Number:
DBP5
 Actual Diameter:
5"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
The specialized injection-molded foam has been designed to deliver just the right amount of firmness; yet, it is comfortable when used on complex shapes, such as curved panels, hood bulges, bumper covers, and fender flares. Micro-hook Velcro really holds on to all varieties of buffing pads, and has proven to be remarkable long lasting.
Price:
$24.95
Qty:
Meguiar's Soft Buff 5" D/A Backing Plate

Meguiar's Soft Buff 5" D/A Backing Plate

Meguiar's Soft Buff 5" D/A Backing Plate
Click to enlarge image(s)



The best Meguiar's 5" plate, to date!

Although the Meguiar's W67DA 5" Backing Plate has proven to be superb, the all-new Meguiar's Soft Buff 5" D/A Backing Plate is even better.

Build quality abounds.
Six rivets attach the mounting stud (5/16-24 male thread) to the internal rigid composite plate, assuring that the backing plate will not be easily damaged due to an unfortunate drop. The beefed-up design also ensures long term durability, and balancing.

The specialized injection-molded foam has been designed to deliver just the right amount of firmness; yet, it is comfortable when used on complex shapes, such as curved panels, hood bulges, bumper covers, and fender flares. Dual white stripes printed onto the backing plate label enable the user to easily gauge the amount of random backing plate rotation generated during use. Micro-hook Velcro really holds on to all varieties of buffing pads, and has proven to be remarkable long lasting.

Optimized for use with all Meguiar's 5" buffing pads.
Looking for the latest advancements in buffing pad technology?  Outfit your machine with this plate, and mount up! Check out the world-renowned Meguiar's 5" DA Microfiber Discs, the fast cutting 5" Xtra-Cut Disc, or an all-new 5" DA Foam Disc.

Looking for a comparable backing plate in a different diameter? 3" DBP3 | 6" DBP6

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5"

  • Attachment material:
    Velcro®- low profile hook
  • Thread size: 5/16"-24 male

  • Long lasting:
    One piece molded construction

Part Number:
915GV20
 Actual Diameter:
4 - 13/16"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This backing plate's hook has been optimized for use with Mirka's net mesh sanding discs. Still, its micro-hook profile works with just about all loop-backed sanding discs & buffing pads. When paired with a vacuum system, 44 holes allow thorough cleaning of the surface.
Price:
$37.30
Qty:
Mirka 5" Diameter Firm-Edge Backing Plate

Mirka 5" Diameter Firm-Edge Backing Plate

Mirka 5" Diameter Firm-Edge Backing Plate
Compatible with most hook & loop systems.
Click to enlarge image(s)
Designed for Abranet® & Autonet™ discs.

This backing plate features 44 vacuum holes, and is designed for use with Abranet® and Autonet™ discs.  However, its micro-hook profile works with just about all loop-backed sanding discs and buffing pads.

Mirka's backing plates are manufactured using a top quality molded polymer construction. This means that the hub, foam center, and face are molded together, not glued. Each plate is balanced to eliminate vibration, so you can work comfortably.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 4-13/16"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.
    •
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 1/2"

  • Weight: 100g (3.5 oz.)
  5" Diameter - Female Thread     /    /     /     /
  6" Diameter - Hole Mount    /     /     /     /

Part Number:
981.500
 Actual Diameter:
5 - 7/8"
 Thread size:
M8 bolt
 Backing Material:
HOOK
This backing plate was made specifically for use with the Rupes® 6" SKORPIO Palm Sanders. Fits all series of Skorpio (RH1, RH2, RH3).Note: Series 1 Skorpio Palm Sanders originally came from the factory with the Rupes 981.320 Backing Plate.
Price:
$45.00
Qty:
Rupes Skorpio 6" Velcro Backing Plate

Rupes Skorpio 6" Velcro Backing Plate

Rupes Skorpio 6" Velcro Backing Plate
981.500 | Rupes 6" Skorpio Velcro Backing Plate.<br/><br/>Side-loaded vacuum slots help to scoop up sanding debris from the surface.<br/><br/>This is a direct replacement for the factory supplied 6" unit. Fits all versions and series of Rupes 6" Skorpio Palm Sanders RH1, RH2, and RH3 series machines.<br/><br/>Actual diameter is 5-13/16". Weight is 129-132 grams.<br/><br/>981.500 | Rupes 6" Skorpio Velcro Backing Plate.<br/><br/>Picture of its face.<br/><br/>This is a direct replacement for the factory supplied 6" unit. Fits all versions and series of Rupes 6" Skorpio Palm Sanders RH1, RH2, and RH3 series machines.<br/><br/>Actual diameter is 5-13/16". Weight is 129-132 grams.<br/><br/>981.500 | Rupes 6" Skorpio Velcro Backing Plate.<br/><br/>Picture of the 981.500 installed on a Rupes Skorpio Palm Sander.<br/><br/>This is a direct replacement for the factory supplied 6" unit. Fits all versions and series of Rupes 6" Skorpio Palm Sanders RH1, RH2, and RH3 series machines.<br/><br/>Actual diameter is 5-13/16". Weight is 129-132 grams.<br/><br/>981.500 | Rupes 6" Skorpio Velcro Backing Plate.<br/><br/>The Rupes® 981.500 6" SKORPIO Velcro Backing Plate utilizes the same mounting platform as the BigFoot 6" Electric Random Orbital Polisher line of machines (LHR21ES Legacy, LHR21ll Mark 2, and LHR21lll Mark 3).<br/><br/>Those wishing to install this plate versus the factory installed 981.321N 6" Velcro Backing Plate should be aware that there may be a faint yet APPARENT vibration when used with some buffing pads. Although the 981.500 is extremely close in weight and shape to the 981.321N, their designs vary slightly.<br/><br/>Actual diameter is 5-13/16". Weight is 129-132 grams, which is 1-3 grams heavier than the factory installed 981.321N Velcro Backing Plate.<br/><br/>
Click to enlarge image(s)


981.500 | Rupes 6" Skorpio Velcro Backing Plate.

Rupes Skorpio Palm Sanders are robust, well-built machines. Even the factory installed backing plate can last for years. But, accidents do happen. Should the backing plate sustain damage due to an inadvertent dropping of the machine or some other unforseen event, you'll be dead in the water unless you've got a replacement on hand. The Rupes 981.500 is a factory-direct replacement for the following 6" Skorpio Palm Sanders:

Rupes series 1 Skorpio Palm Sanders:
RH153 | RH153A | RH156 | RH156A | RH159 | RH159A
RH112 | RH112A

Rupes series 2 Skorpio Palm Sanders:
RH253 | RH253A | RH256 | RH256A | RH259 | RH259A

Rupes series 3 Skorpio Palm Sanders:
RH353 | RH353A | RH356 | RH356A | RH359 | RH359A

Note: Originally, series 1 Skorpio's were outfitted with the  Rupes 981.320 6" Normal-Hold Velcro Backing Plate, which featured a gray-colored scrub plate. In its place, the Rupes 981.321N 6" Extra-Hold Velcro Backing Plate will work, as will this plate.

 Looking for a vinyl-backed version of this plate?
Check out the 981.145N Rupes 6" Vinyl Backing Plate.

We stock backing plates for the following machines:
LHR15ES | LHR15II | LHR15III | LHR15V | HLR15 | LHR21ES | LHR21II | LHR21III | LHR21V | HLR21 | LHR75 | LHR75E | HLR75 | LHR12E | LH19E | LH76P | LD30 | TA50 | Skorpio
  6" Diameter - Male Thread    /     /     /     /

Part Number:
106GG
 Actual Diameter:
5 - 13/16"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This is one of our most popular backing plates.  It features a traditional flare-shaped edge, allowing for progressive flexibility over contours and curves.  The micro hook attachment material is very durable and grippy.  This plate is well built, balanced, and will last a long time.
Price:
$24.80
Qty:
Mirka 6" Diameter Backing Plate - Hook Face

Mirka 6" Diameter Backing Plate - Hook Face

Mirka 6" Diameter Backing Plate - Hook Face
Click to enlarge image(s)


Hook face, compatible with all hook & loop systems.

One of our best sellers, and for good reason! For starters, this plate features more flexibility than its vinyl backed counterpart (Mirka #106).

The medium density polyurethane foam used as the core of this plate is firm enough to level substrates, but thanks to its flared edge, conformability is good when used on curved surfaces.

Mirka's backing plates are manufactured using a top quality molded polymer construction. This means that the black hub, yellow foam center, and white face are molded together, not glued.

Each plate is balanced to eliminate vibration, so you can work comfortably.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5-13/16"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 7/16"

  • Weight: 130g (4.6 oz.)

Part Number:
106SG
 Actual Diameter:
5 - 5/8"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This plate features a soft urethane core that is 9/16" tall, so it's a perfect choice when contouring ability is a must. This is not a flimsy plate, and should last a long time. It feels nice, and works equally well with sanding discs and buffing pads.
Price:
$29.52
Qty:
Mirka 6" Diameter Backing Plate - Hook Face

Mirka 6" Diameter Backing Plate - Hook Face

Mirka 6" Diameter Backing Plate - Hook Face
Hook & Loop
Click to enlarge image(s)
Compatible with all hook & loop systems.

This plate features a soft urethane core that is 9/16" tall, so it's a perfect choice when contouring ability is a must. This is not a flimsy plate, and should last a long time. It feels nice, and works equally well with sanding discs and buffing pads.

At 146 grams (5-1/8 oz.), this plate is heavy compared to plates featuring a similar diameter. The weight can be a plus if you are replacing a larger diameter plate in hopes of using smaller diameter discs or pads (such as when using the currently popular Dynabrade Dual Action Buffing Head).

Mirka's backing plates are manufactured using a top quality components.

Each plate is balanced to eliminate vibration, so you can work comfortably.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5-5/8"

  • Attachment material: micro-hook

  • Max speed: 13,000 r.p.m.
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 7/16"

  • Weight: 146g (5-1/8 oz.)

Part Number:
916SGV
 Actual Diameter:
5 - 13/16"
 Thread size:
5/16-24
 Backing Material:
MICRO HOOK
This backing plate's hook has been optimized for use with Mirka's net mesh sanding discs. Still, it'll work with most hook & loop systems.  It is very soft and flexible compared to other Mirka plates.  When paired with a vacuum system, 52 holes allow thorough cleaning of the surface.
Price:
$44.00
Qty:
Mirka 6" Diameter Soft-Edge Backing Plate - Abranet/Autonet

Mirka 6" Diameter Soft-Edge Backing Plate - Abranet/Autonet

Mirka 6" Diameter Soft-Edge Backing Plate - Abranet/Autonet
Compatible with most hook & loop systems.
Click to enlarge image(s)


Designed for Abranet® & Autonet™ discs.

This particular backing plate is designed for use with Abranet® and Autonet™ discs. It features 52 vacuum holes and is designated as "soft", so it contours to complex or curved shapes quite well.

The face of the plate features a hook material that has been specifically designed for Abranet® and Autonet™ discs, but it works well with virtually any loop-style sanding disc.

Mirka's backing plates are manufactured using a top quality molded polymer construction. This means that the hub, foam center, and face are molded together, not glued.

Each plate is balanced to eliminate vibration, so you can work comfortably.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5-13/16"

  • Attachment material: hook

  • Max speed: 13,000 r.p.m.

  • "Soft" designation means backing plate easily contours to complex surfaces
  • Thread size: 5/16"-24 male

  • Height to mounting pad: 15/32"

  • Weight: 130g (4.6 oz.)

  • Designed for use with Abranet® and Autonet™ sanding discs

Part Number:
106HDGP
 Actual Diameter:
5 - 7/8"
 Thread size:
5/8 - 11
 Backing Material:
LARGE HOOK
This firm-backed backing plate features a urethane molded center and large hooks for proper attachment to non-woven abrasive discs, such as Mirka Mirlon or Mirlon Total™. It can also be used for grinding with Mirka Abranet HD discs up to 6,000 RPM.
Price:
$27.84
Qty:
Mirka 6" Diameter Large-Hook Backing Plate - firm face

Mirka 6" Diameter Large-Hook Backing Plate - firm face

Mirka 6" Diameter Large-Hook Backing Plate - firm face
Click to enlarge image(s)
Large-hook attachment material is designed for use with Abranet® HD, Mirlon, and Mirlon Total™ discs.

Mirka's Abranet HD Discs are stout. They're so tough, they can be used as grinding discs!

To keep them from slinging off at high RPM, you'll want to use this plate. The large-hook attachment material is also ideal for use with non-woven discs, such as Mirka Mirlon, Mirlon Total™, and 3M Scotch-Brite™ discs.

This is a stiffly-backed plate, and is rated for speeds up to 6,000 RPM.

Need a backing plate with more flexibility?

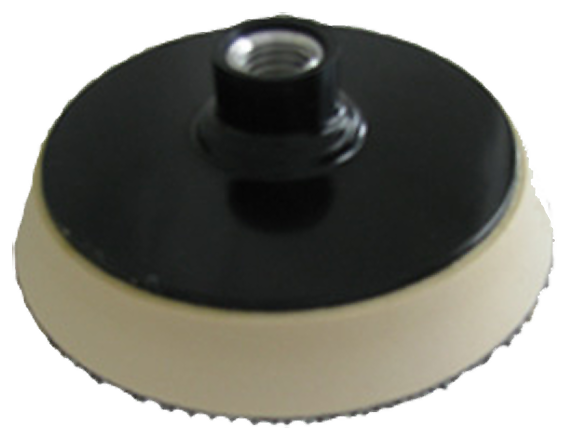

Check out the Ferro GP-36.  It is soft-backed, and is safe for use up to 4,800 RPM.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5-7/8"

  • Attachment material:
    large hook

  • Max speed: 6,000 r.p.m.

  • Alternate number:
    Ferro GP-916U or 6396
  • Thread size: 5/8-11 female

  • Weight: 000g (0.00 oz.)

  • Designed for use with:
    Non-woven discs such as Mirka Mirlon, Mirlon Total™, and 3M Scotch-Brite™ pads

Part Number:
106
 Actual Diameter:
5 - 13/16"
 Thread size:
5/16-24
 Backing Material:
•• VINYL ••
This plate features a blunt edge, so it can take quite a bit of abuse. Even so, it still offers good flexibility. The vinyl backing material is very durable, so it can withstand a lot of disc changing. As is the case with all Mirka backing plates, this one is durable and balanced. Plan on having this sturdy work horse a long time.
Price:
$22.20
Qty:
Mirka 6" Diameter Backing Plate- Vinyl Face

Mirka 6" Diameter Backing Plate- Vinyl Face

Mirka 6" Diameter Backing Plate- Vinyl Face
Vinyl Face / PSA
Click to enlarge image(s)
Vinyl Face. for use with PSA discs.

The medium density polyurethane foam used as the core of this plate is firm enough to level substrates, but will give a small degree.

It does not have a sharply flared edge, so it has less give than its hook-backed counterpart (Mirka #106GG). The added edge height means this plate can take quite a beating.

Its vinyl backing material is very durable, so it can handle a lot of disc changing.

Mirka's backing plates are manufactured using a top quality molded polymer construction. This means that the black hub, yellow foam center, and white face are molded together, not glued.

Each plate is balanced to eliminate vibration, so you can work comfortably.

To view our entire backing plate lineup, visit the Backing Plate Main Page.
Specifications
  • Actual diameter: 5-13/16"

  • Attachment material:Vinyl
  • Thread size: 5/16"-24 male

  • Height to mounting pad:7/16"

  • Weight:130g (4.6 oz.)
  6" Diameter - Female Thread    /     /     /     /
