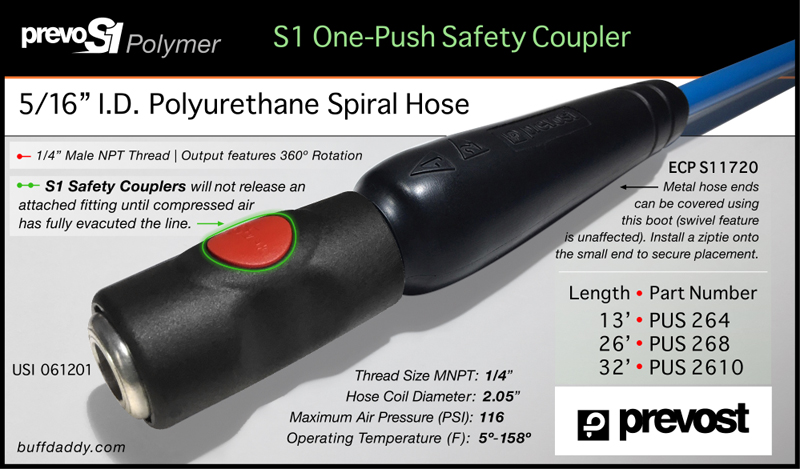

Prevost S1 One-Push Safety Coupling: To connect: Place the fitting into the coupler, and push together. To disconnect: Press the button once. The connected fitting will not release until all pressurized air has fully evacuated the line. This ingenious design eliminates dangerous “hose whip” & inadvertent launching of connected hoses and tools.<br/><br/>To quickly determine thread size, measure the diameter of the smallest thread.<br/><br/>1/4" thread = 17/32” (14mm)<br/>3/8" thread = 21/32” (17mm)<br/>1/2" thread = 27/32” (21mm)<br/><br/>Prevost S1 Safety Couplers are a treat to use. To connect: slide a fitting into the S1 Coupler and push together until the fitting locks into place. To disconnect, press the air release button ONCE. The S1 Coupler will not release an attached fitting until all of the compressed air has evacuated the line.<br/><br/>Prevost PREVO Polymer Composite S1 One-Push Safety Couplers are available in a trio of thread sizes (1/4", 3/8", and 1/2"). The couplers shown in this photo feature 1/4" NPT thread, which are capable of flowing up to 34 cubic feet per minute of air. This equates to 254 gallons per minute!<br/><br/>Specifications-<br/>1/4" NPT Thread | Truflate / Automotive Profile<br/><br/>USI 061201<br/>Prevost S1 One-Push Safety Coupler | Female Thread | Flow: 34 CFM / 254 GPM<br/><br/>USI 061251<br/>Prevost S1 One-Push Safety Coupler | Male Thread | Flow: 34 CFM / 254 GPM<br/><br/>IRP 066201<br/>Air Fitting aka Plug | Female Thread<br/><br/>IRP 066251<br/>Air Fitting aka Plug | Male Thread<br/><br/>Prevost S1 Safety Quick Couplers: "Feel that QUALITY!" One-Push Technology eliminates hose whip, and inadvertent launching of connected hoses & tools. S1 Couplers feature polymer-composite bodies that are impressively durable. S1 Couplers are ergonomically shaped to deliver maximum comfort & ease of use. <br/><br/> Prevost S1 Safety Couplers are available in a trio of thread sizes (1/4", 3/8", and 1/2"). The couplers shown in this photo feature 1/4" NPT thread, which are capable of flowing up to 34 cubic feet per minute of air. This equates to 254 gallons per minute!<br/><br/>Specifications-<br/>1/4" NPT Thread | Truflate / Automotive Profile<br/><br/>USI 061201<br/>Prevost S1 One-Push Safety Coupler | Female Thread | Flow: 34 CFM / 254 GPM<br/><br/>USI 061251<br/>Prevost S1 One-Push Safety Coupler | Male Thread | Flow: 34 CFM / 254 GPM<br/><br/>IRP 066201<br/>Air Fitting aka Plug | Female Thread<br/><br/>IRP 066251<br/>Air Fitting aka Plug | Male Thread<br/><br/>UBG 06PRE • Prevost PREVO S1 Compact Blow Gun with Composite Nozzle<br/><br/>Fits 1/4" NPT Thread Couplers | Truflate / Automotive Profile<br/><br/>Specifications-<br/>Maximum Air Pressure: 174 PSI<br/>Noise Level: 85 dBA (no distance to microphone given)<br/>Blowing Force (at 87 PSI): 10 Ozf<br/>Air Consumption (at 87 PS): 8.2 CFM<br/>Dynamic Pressure (at 87 PSI | 4" distance): 36 PSI<br/><br/>UBG 06MTL • Prevost PREVO S1 Compact Blow Gun with Metal Nozzle<br/><br/>Fits 1/4" NPT Thread Couplers | Truflate / Automotive Profile<br/><br/>Specifications-<br/>Maximum Air Pressure: 174 PSI<br/>Noise Level: 89 dBA (no distance to microphone given)<br/>Blowing Force (at 87 PSI): 14 Ozf<br/>Air Consumption (at 87 PS): 11.8 CFM<br/>Dynamic Pressure (at 87 PSI | 4" distance): 32 PSI<br/><br/>BG FIX • Prevost Composite Wall Mount Bracket.<br/><br/>Keep your blowgun handy by sliding it into this Wall Mount Bracket. Composite plastic material is rigid & sturdy. Fits Prevo S1 & Prevost Traditional Blowguns. Mounting Screws not included.<br/><br/>Shown in photo: Prevost Traditional-Style Blowgun (27202 OSHA), and Prevo S1 Compact Blowgun with Composite Tip (IBG 06PRE), both resting in a Wall Mount Bracket (BG FIX).<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost PREVO S1 Safety Coupler (ISI 061201), Prevost PREVO S1 Compact Composite Blowgun with Composite Tip (IBG 06PRE), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires<br/>a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>Prevost Polyurethane Spiral Hoses are available in 13', 26', and 32' lengths (fully extended), making them perfect for use in a variety of locations. Install atop work benches, mount below tables, or drop from the ceiling (in lieu of a straight hose & reel). Install anywhere that requires<br/>a clutter-free environment.<br/><br/>Hose ends feature super durable non-slip rubber grips (3-5/16" length), and 1/4" Male NPT thread. Inlet threads are fixed, and do not rotate, or swivel. Outlet threads feature 360º rotation, designed to increase user comfort by minimizing hose kinking & twisting.<br/><br/>Shown outfitted with a Prevost PREVO S1 Safety Coupler (ISI 061201), and Prevost Rubber Boot / Ear Clamp Cover & Coupling Protector (ECP S11720).<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 5/16" ID | Coil diameter: 2.05" | Straight length of hose on output side: 19" | Maximum air pressure: 116 PSI | Operating temperature: 5º-158ºF | Available hose lengths (fully extended): 13' (PUS 264) • 26' (PUS 268) • 32' (PUS 2610)<br/><br/>ECP S11720 • The Prevost Ear Clamp Cover & Coupling Protector serves double duty as a Rubber Boot! Originally designed to cover the hose clamp used to secure bulk hose onto a hose-barb coupler or fitting. Fits 3/8"-1/2" ID hose.<br/><br/>Specifications:<br/>Inlet Ø: 11/16" ID | Outlet Ø: 13/16" ID | Overall length: 4-5/16" | Fits up to 1-1/8" Ø coupler nutPrevost Surflex Industrial Hoses are available in 25' and 50' lengths. Hose ends feature 1/4" Male NPT thread. Threads are fixed, and do not rotate, or swivel.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 3/8" ID | Maximum air pressure: 300 PSI | Operating temperature: -10º-158ºF | Available hose lengths: 25' (SUR 3825) • 50' (SUR 3850)<br/><br/>Prevost Surflex Industrial Hoses are available in 25' and 50' lengths. Hose ends feature 1/4" Male NPT thread. Threads are fixed, and do not rotate, or swivel.<br/><br/>Hose Specifications:<br/>Thread size: 1/4" NPT Male | Hose diameter: 3/8" ID | Maximum air pressure: 300 PSI | Operating temperature: -10º-158ºF | Available hose lengths: 25' (SUR 3825) • 50' (SUR 3850)<br/><br/>Prevost Surflex Industrial Air Hose, S1 Safety Coupler, S1 Compact Blowguns.<br/>Piecing together an air distribution system can be confusing. To simplify things, we've gathered up the components needed to build a basic air distribution system, and listed them here. If you are unfamiliar with the terminology used to describe various air components, here are the basics:<br/><br/>• A fitting (or plug) mounts to the inlet side of a hose or tool. Fittings plug into couplers, and lock into place.<br/><br/>• A coupler mounts to the outlet side of a compressor, hose, or distribution block. Couplers accept fittings that are plugged into them, coupling or mating them together.<br/><br/>• The term profile refers to the shape of the mating points that lock fittings into couplers. The components listed here utilize an Industrial Profile.<br/><br/>• NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>URP 066201 | Truflate/Automotive Profile | 1/4" Female NPT Thread Fitting/Plug<br/><br/>URP 066251 | Truflate/Automotive Profile | 1/4" Male NPT Thread Fitting/Plug<br/><br/>About NPT thread: National Pipe Taper thread progressively flares in diameter from small to large, ensuring an airtight seal as components are screwed together. Three size variations of NPT thread are commonly used to build compressed-air systems (1/4" | 3/8" | 1/2").<br/><br/>
Click to enlarge image(s)




Simplified shopping, for Prevost Truflate/Automotive Profile products.
Piecing together an air distribution system can be confusing. To simplify things, we've gathered up the components needed to build a basic air distribution system, and listed them here. This page features ultra-premium Prevost products, including:

• Prevost S1 Safety Couplers
• Prevost S1 Compact Blowguns
• Prevost Surflex Industrial Hose
• Prevost Polyurethane Spiral Hose
• Prevost Fittings & Accessories

Prevo S1 One-Push Safety Couplers feature ergonomically shaped, non-marring rugged composite polymer bodies. The moment you place a Prevost® PREVO S1 Safety Coupler in your hand, it becomes immediately apparent that this is no ordinary coupler.

To connect hoses & tools, press the fitting into the coupler until it locks into place. To release, press the disconnect button once. The fitting will not release until compressed air has fully evacuated the line. Prevost S1 One-Push Safety Couplings are incredibly simple to operate.

 Prevo S1 Compact Blowguns.
Super compact, easy to manage. Composite or metal tip.

Prevost Air Hose.
Traditional or spiral hose. Several lengths available.

 Prevost Hose Kits... Build your own!
Includes hose, coupler, & plug. Choose hose & blowgun type.

 For optimum performance:
Use only precision-matched Prevost Fittings/Plugs. Purchase them here.

 We carry a wide variety of Prevost products. View them here.

 Also available in High Flow and Industrial profiles.
Specifications & Terminology:

• A fitting or plug mounts to the inlet side of a hose
  or tool. Fittings plug into couplers, and lock into place.

• Three sizes of NPT thread are commonly used to
   build compressed-air systems (1/4" | 3/8" | 1/2").
• A coupler mounts to the outlet side of a compressor,
  hose, or distribution block. Couplers accept fittings that
  plug into them, coupling or mating them together.

 • NPT thread: National Pipe Taper thread progressively
  flares in diameter from small to large. This ensures an
  airtight seal as components are screwed together.
• Prevost Prevo S1 1-Push Safety Coupler

 • Truflate / Automotive Profile
Part number & SKU & thread type:
USI061201 | USI 061201 | 1/4" NPT female
USI061251 | USI 061251 | 1/4" NPT male
 Specifications:
Operating Pressure: 29-174 PSI
Max Flow Rate: 34 CFM @ 100 PSI
